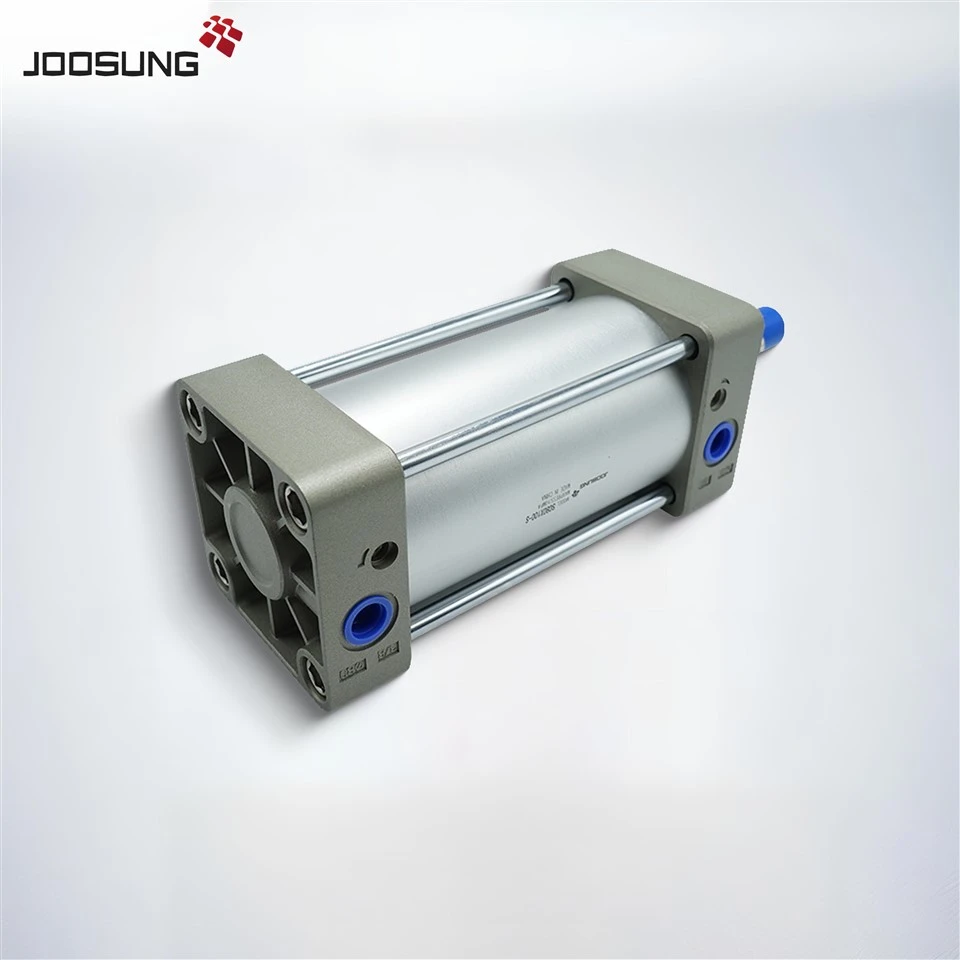

Mfululizo wa silinda ya nyumatiki ya SC ni kipenyo cha kawaida-aina ya aina iliyojengwa kulingana na viwango vya Airtac na vipimo vya ISO15552. Inaangazia-utendaji wa kuigiza mara mbili,-pipa la aloi ya aluminium yenye nguvu ya juu, na vifuasi vya kupachika vinavyoweza kuwekewa mapendeleo, na kuifanya kuwa mojawapo ya mitungi inayokubalika zaidi katika mitambo ya kiotomatiki ya viwandani.
Silinda za SC zinajulikana kwa uimara wao, utendakazi wa kuaminika, na urahisi wa kuunganishwa. Kwa ukubwa mbalimbali wa bore kuanzia 32mm hadi 100mm, na urefu wa kiharusi unapatikana hadi 1000mm, mfululizo wa SC hutoa suluhu inayoamiliana kwa mahitaji ya jumla{4}}ya kusudi la mwendo wa mstari.
|
Jinsi ya Kuagiza SC Series Pneumatic Silinda |
|||||
|
S |
C |
50 |
50 |
20 |
S |
|
Mfano |
Ukubwa wa bore |
Kiharusi cha Silinda |
Kiharusi kinachoweza kurekebishwa |
Sumaku |
|
|
C: Kuigiza mara mbili |
32 40 |
Hapana msimbo huu |
Tupu:Bila sumaku |
||
|
CD: Fimbo mbili |
50 63 |
S:Na sumaku |
|||
|
CJ: Kiharusi kinachoweza kubadilishwa |
80 100 |
10 20 30 40 50 75 100 |
|||
Je, unatafuta silinda ya nyumatiki ya kiwango cha ISO inayotegemewa kwa mfumo wako wa otomatiki?
TheMfululizo wa SChutoa utendakazi uliothibitishwa na usanidi unaonyumbulika kwa matumizi mengi ya viwandani.
Wasiliana nasi sasakupata hifadhidata ya kiufundi, faili za 3D CAD, au nukuu iliyobinafsishwa!
|
Vipimo |
||||||||||
|
Bore mm |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
160 |
200 |
|
|
Mwelekeo wa Mwendo |
Hatua Mbili |
|||||||||
|
Kazi ya Kati |
Hewa Iliyochujwa |
|||||||||
|
Aina Zisizohamishika |
Aina ya kawaida / Aina ya FA / Aina ya FB / Aina ya CA / Aina ya CB / Aina ya SDB / Aina ya LB / |
|||||||||
|
Kiwango cha shinikizo la kufanya kazi |
0.1 ~ 1.0MPa |
|||||||||
|
Kuhakikisha Upinzani wa Shinikizo |
MPa 1.5 |
|||||||||
|
1 Joto la Uendeshaji |
-5 ~ 70 digrii |
|||||||||
|
Kiwango cha kasi cha Uendeshaji |
50~800 mm/s |
|||||||||
|
Aina ya Bafa |
Bafa inayoweza kurekebishwa |
|||||||||
|
Kiharusi cha Buffer |
20 mm |
26 mm |
45 mm |
|||||||
|
Ukubwa wa Bandari |
G1/8" |
G1/4" |
G3/8" |
G1/2" |
G3/4" |
|||||
|
SCMifano ya Mfululizo Miundo Inayopatikana |
||||
|
SC32X25S |
SC32X50S |
SC32X75S |
SC32X100S |
SC32X125S |
|
SC32X150S |
SC40X50S |
SC40X75S |
SC40X100S |
SC40X125S |
|
SC40X150S |
SC40X175S |
SC40X200S |
SC40X250S |
SC50X50S |
|
SC50X75S |
SC50X80S |
SC50X100S |
SC50X125S |
SC50X150S |
|
SC50X160S |
SC50X175S |
SC50X200S |
SC50X250S |
SC50X300S |
|
SC63X75S |
SC63X80S |
SC63X100S |
SC63X125S |
SC63X150S |
|
SC63X200S |
SC63X250S |
SC63X300S |
SC63X350S |
SC80X80S |
|
SC80X100S |
SC80X125S |
SC80X150S |
SC80X175S |
SC80X200S |
|
SC80X250S |
SC80X300S |
SC80X350S |
SC80X400S |
SC80X450S |
